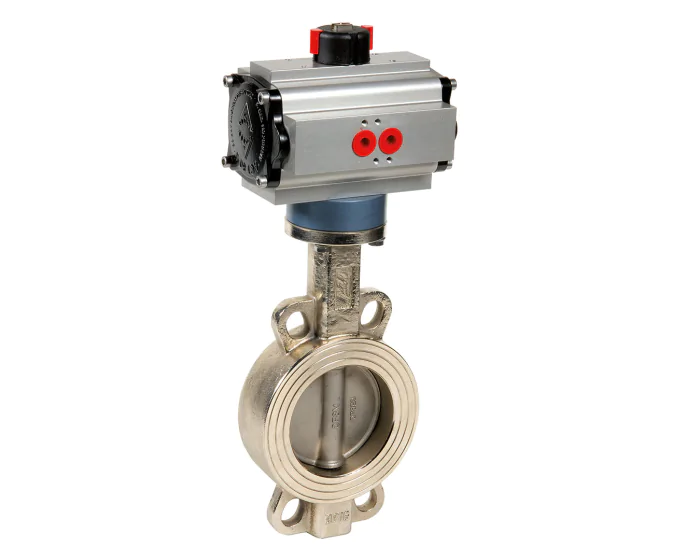

The 1111 series carbon steel butterfly valve, equipped with either a spring return or double acting ACTREG pneumatic actuator, features a CF8M disc and an A216WCB body. It is a wafer type, up to DN200. PN10/16 and ANSI 150.
| Specification | Value |
|---|---|
| Option certificate 3.1 | Yes |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel AISI 420 |
| Adjustable limit screws | Yes |
| Lockable | Yes |
| ATEX compatible | Yes |
| DN | DN40 - 1''1/2 |
| Face to Face (mm) | 60.0 |
| Seat | Metal/metal |
| Body material | Carbon steel A216 WCB (1.0619) |
| Number of ways | 2 |
| Disc material | Chrome-plated ductile iron |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | Between flanges PN10/16 #150 |
| Surface temperature | TX |
| Pneumatic actuator type | Double acting |
| Wafer/lug | Wafer |
| Warranty period | 2 years |
| CE | Risk category II |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 Double acting | 263003015100 | S1003542 |
€260.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN40 - 1''1/2 Spring return | 263003016101 | S1003543 |
€297.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN50 - 2'' Double acting | 263004015100 | S1003544 |
€260.96
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN50 - 2'' Spring return | 263004016101 | S1003545 |
€297.01
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN65 - 2''1/2 Double acting | 263005015101 | S1003546 |
€295.80
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN65 - 2''1/2 Spring return | 263005016102 | S1003547 |
€342.71
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN80 - 3'' Double acting | 263006015101 | S1003548 |
€322.49
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN80 - 3'' Spring return | 263006016102 | S1003549 |
€374.46
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN100 - 4'' Double acting | 263007015102 | S1003550 |
€363.86
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN100 - 4'' Spring return | 263007016103 | S1003551 |
€415.83
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN125 - 5'' Double acting | 263008015102 | S1003552 |
€425.89
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN125 - 5'' Spring return | 263008016104 | S1003553 |
€525.57
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN150 - 6'' Double acting | 263009015103 | S1003554 |
€545.26
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN150 - 6'' Spring return | 263009016105 | S1003555 |
€839.09
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN200 - 8'' Double acting | 263010015104 | S1003556 |
€691.64
(excl. btw)
|
add to cart |
| Between flanges PN10/16 #150 Carbon steel A216 WCB (1.0619) DN200 - 8'' Spring return | 263010016106 | S1003557 |
€1,037.46
(excl. btw)
|
add to cart |
